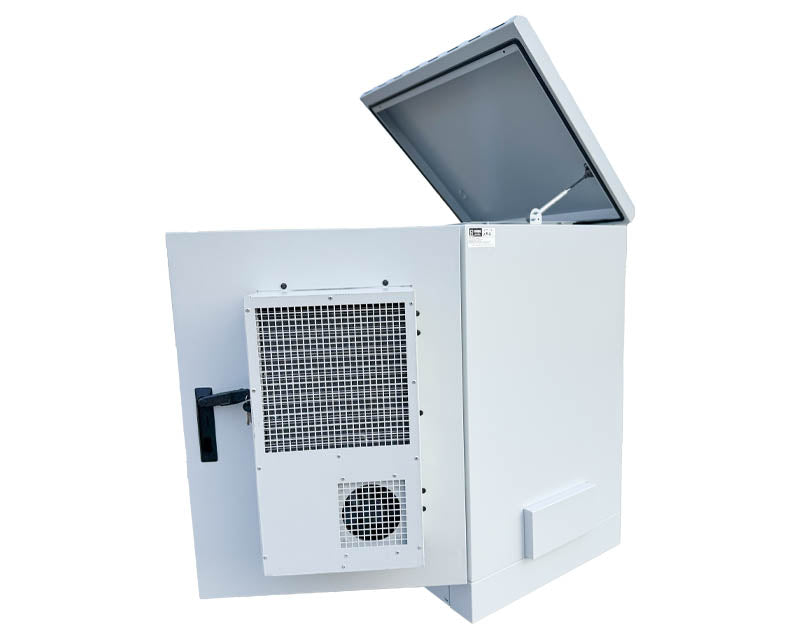

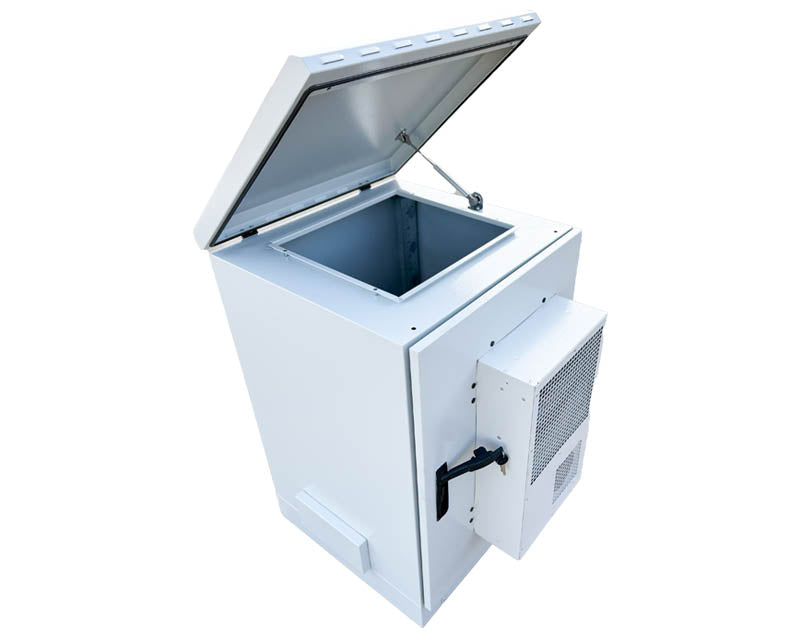

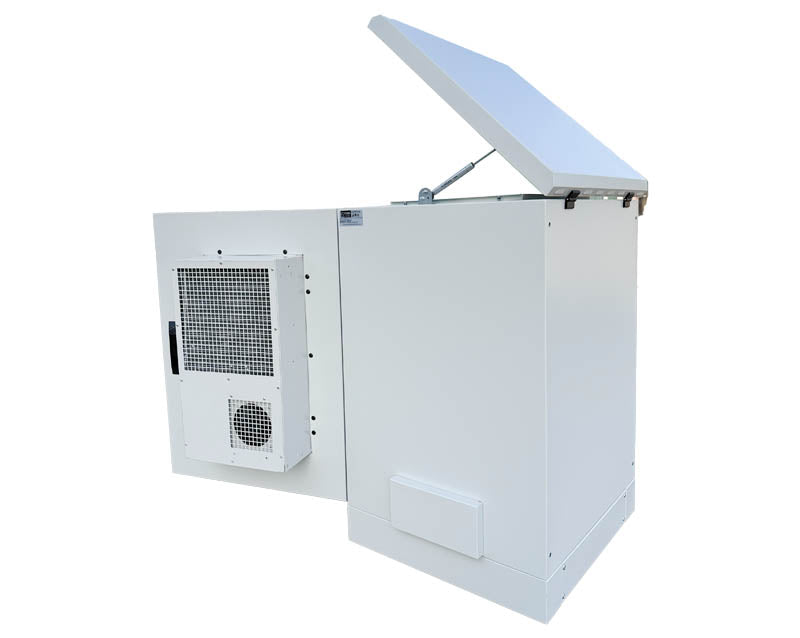

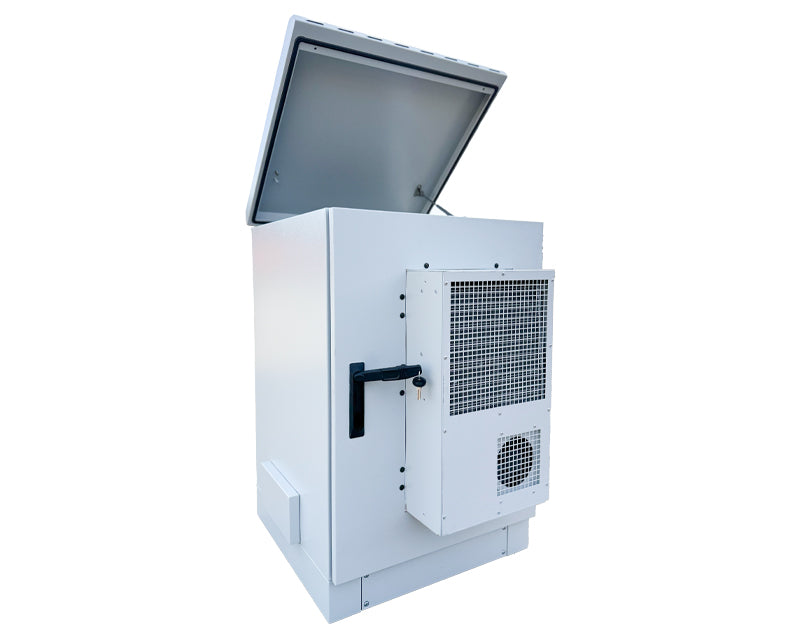

16U 19" Outdoor Network Cabinet with AC Unit IP 66 NEMA Enclosure with IP 55 rated A/C unit (STV-HC-16U600AC)
Product Specifications
-
Sheet Thickness: 1.2mm
-
Structural Frame: 1.5mm thick galvanized steel
-
Coating: Epoxy polyester powder paint in RAL 7035
-
Protection Rating: IP66 (dust and water resistant)
-
Mounting Options: Can be mounted on a pole or wall
-
Seal: Polyurethane molded seal for waterproofing
Dimensions
-
Assembled Width: 600mm (24")
-
Assembled Height: 950mm (37.5")
-
Assembled Depth: 600mm (24")
Inner Dimensions
-
Inner Height: 720mm (28.3")
-
Outer Height: 950mm (37.5")
Weight & Color
-
Weight: 125.66 lbs
-
Color: RAL 7035 Light Gray
MCA Series Industrial A/C Unit (600W 110V 60Hz)
The MCA Series air conditioners are engineered to efficiently remove heat from enclosures, safeguarding temperature-sensitive components by maintaining a stable internal environment. Designed for demanding industrial applications, these units ensure optimal performance and longevity.
Key Features:
-
Flexible Installation: User-friendly design allows for versatile and convenient mounting options.
-
High Performance: Quiet operation, high energy efficiency, and robust construction with corrosion-resistant materials. Rated IP55 for superior dust and water protection.
-
Exceptional Reliability: Built with renowned industrial-grade components for dependable, long-term operation.
-
Eco-Friendly Refrigerant: Uses R134a refrigerant, meeting environmental protection standards.
-
Wide Operating Temperature Range: Reliable performance in extreme environments from -40°C to +55°C.
-
Advanced Dehumidification (Optional): Professional-grade dehumidification technology available for moisture-sensitive applications.
-
Smart Monitoring (Optional): 4-20mA signal output for real-time temperature and humidity monitoring.
-
Integrated Remote Management: Multifunctional alarm outputs and RS485 interface for seamless remote control and status reporting.
-
582mmX352mmX170mm 13Kg
- 23"x14"x6.7" 29 lbs
