24U Outdoor Network Cabinet - Weatherproof & IP66 Rated (NEMA 4) Network Enclosure | Dust & Water Resistant, Fan-Ready (Optional) | 24-inch Width x 31.5-inch Depth

Sale price$1,199.00 Regular price$1,400.00
Save $201.00

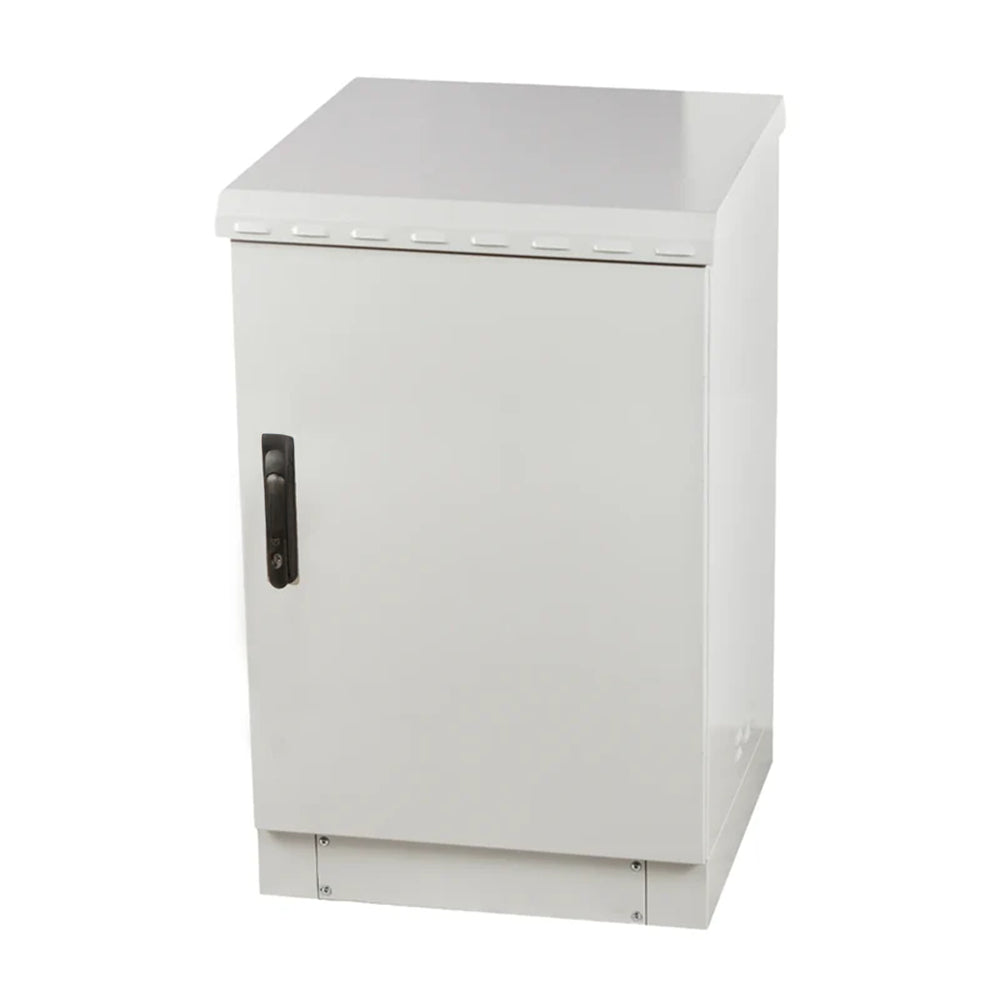

24U Outdoor Network Cabinet - Weatherproof & IP66 Rated

The 24U Outdoor Network Cabinet offers a robust solution for protecting network devices and servers in harsh outdoor environments. With its IP66 rating, this outdoor network cabinet ensures superior protection against dust and water ingress, making it the ideal choice for safeguarding equipment in exposed, high risk locations. Designed for 19 inch mounting, it supports a wide range of network equipment, including servers, wireless routers, and security devices, offering reliable and secure storage in even the most challenging conditions.

Built for Extreme Durability

Constructed from 1.5mm thick galvanized steel, this outdoor cabinet is designed to withstand the toughest environmental conditions. The single wall design provides strength and stability, while the polyurethane molded seal ensures a watertight enclosure, protecting sensitive network devices from rain, snow, and other weather elements. The cabinet is also coated with a RAL 7035 epoxy polyester powder paint, providing a durable finish that resists UV rays and harsh weather, ensuring that the cabinet maintains its appearance and functionality over time.

Enhanced Cooling Options

The 24U Outdoor Network Cabinet is fan ready, offering optional installation of up to 2 or 4 fans to enhance airflow and prevent overheating. These fans help maintain an optimal temperature inside the cabinet, ensuring that the equipment remains cool and functional in high temperature environments. When fans are installed, the cabinet retains its IP54 protection rating, maintaining effective dust and water resistance while improving ventilation.

Ideal for a Variety of Outdoor Applications

This outdoor cabinet is designed to meet the needs of various outdoor applications, from protecting network access devices to securing camera systems. With 31.5 inch depth (800mm), it accommodates larger equipment and provides ample space for 19 inch rack systems with depths of 600mm to 400mm. Whether you're housing a DVR recording device, a UPS power supply, or a wireless modem/router, this outdoor network cabinet is capable of securely housing your equipment and ensuring its longevity, even in extreme weather.

Versatile Mounting and Installation

The 24U Outdoor Network Cabinet is designed for flexible installation options. It can be mounted on a pole or wall, making it adaptable to a range of outdoor environments. This flexibility ensures that you can install your network equipment in optimal locations, whether it's on a rooftop, utility pole, or building wall. The cabinet’s compact design maximizes space efficiency while providing ample room for equipment.

Key Features:

  • Weatherproof Construction: IP66 rated, ensuring protection against dust, water, and environmental elements.

  • Fan Ready: Supports up to 4 fans for cooling, with an IP54 rating when fans are installed.

  • Material: Made from 1.5mm galvanized steel with RAL 7035 epoxy polyester powder paint for durability and resistance to UV and outdoor conditions.

  • Sealing: Polyurethane molded seal ensures a watertight enclosure for added protection.

  • Mounting Options: Can be mounted on a pole or wall for versatile installation.

  • Compatibility: Ideal for network access devices, wireless devices, camera recording devices, and other essential outdoor equipment.

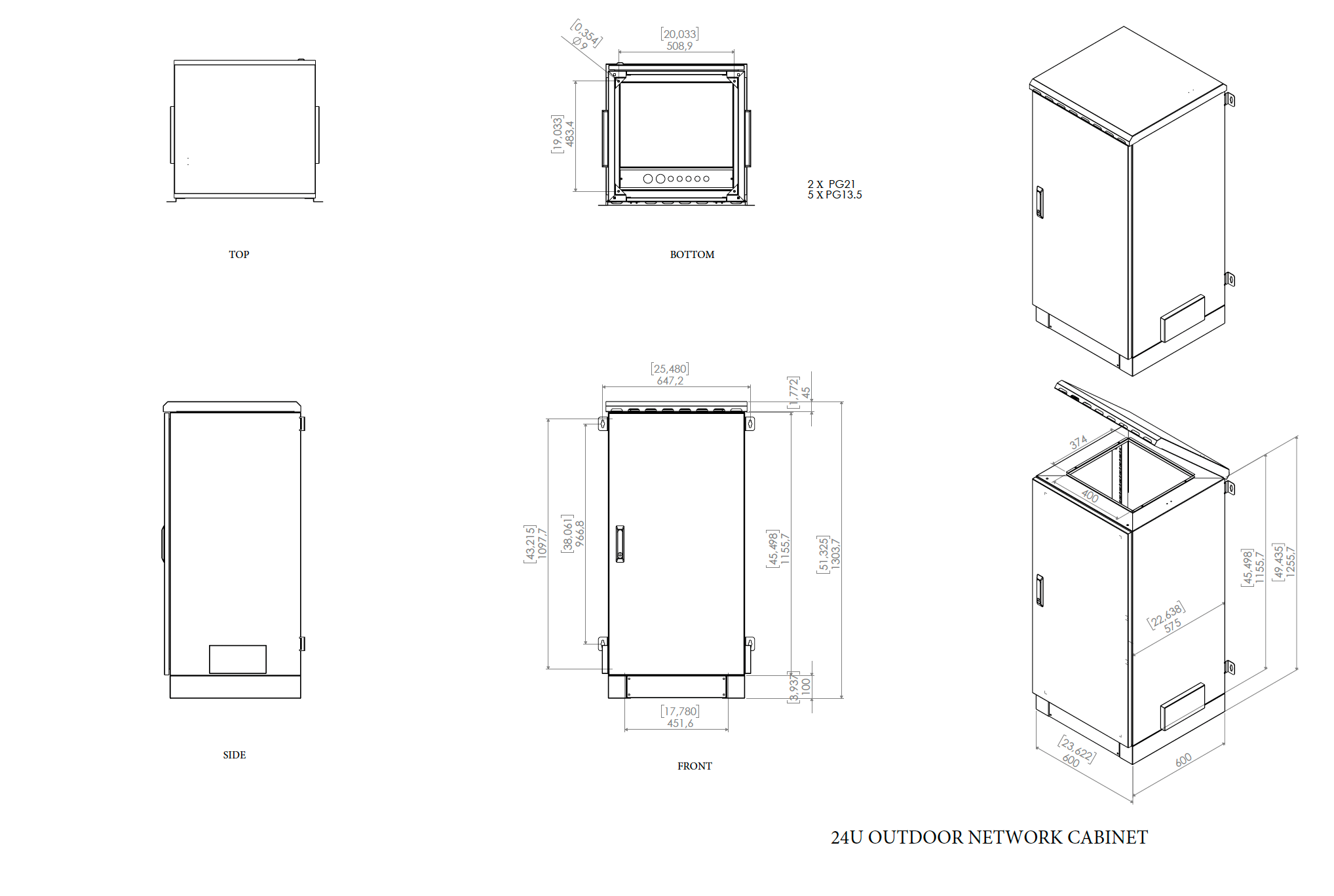

Dimensions:

  • Assembled Dimensions: Width: 600mm (24”), Depth: 800mm (31.5”), Height: 1050mm + 100mm (41” + 4”)

  • Sheet Thickness: 1.2mm exterior with a 1.5mm galvanized steel frame

  • Weight: Approx. 55 kg (121 lbs)

Weight and Color:

  • Weight: Approx. 55 kg (121 lbs)

  • Color: RAL 7035 Light Gray

Product SKU: STV-HC-24U6080
Brand: STURDX
Manufacturer Product Code: HC-24U6080
Manufacturer Model/Series Name: Outdoor Series
